Multicolor LED CAN Rocker Switch Module
The 482CRM series is a programmable multi-color LED rocker switch module, designed to operate within a Controller Area Network (CAN) j1939.
This innovative new product incorporates independently controlled LED’s, allowing custom-configured color selection on a per LED basis. Via configuration utility software, each LED is capable of being configured to produce up to 8 unique colors without the need for special ordering or assembly.The software is integrated with HMI CANconnect software suite.

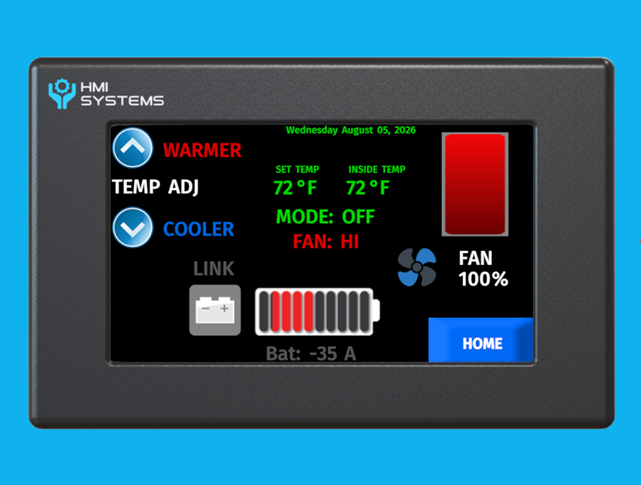

Media Display Interface
The 550MDI (Media Display Interface) is a CAN based 4.3” 262K color 480 x 272 TFT High Brightness LCD with touchscreen. The 550MDI supports dual independent CAN transceivers and a LIN transceiver for providing a gateway between multiple in-vehicle networks.
Screens are designed using an intuitive GUI builder (CAN Create) capable of implementing dynamic customer interfaces.
The 550MDI is housed in a custom molded enclosure that allows for a minimum dash profile of 0.75 inches and various mounting options.
The housing contains two molded in Deutsch DT style polarized connectors for enhanced sealing and reliability.
CAN Display Interface
The 516CANDI (CAN Display Interface) is a CAN based 2.4" color TFT LCD with touchscreen. Screens are designed using an intuitive GUI builder that leverages simple HTML and scripting support for implementing dynamic customer interfaces. The software is integrated with HMI CANcreate software suite.
Touch Screen Display Interface
The 650CDI is a 7" digital color touch screen display featuring two CAN 2.00 communication ports as well a front facing USB port for programming. The display is touch screen but also has nine fixed rubber inputs for screen navigation.The software is integrated with HMI CANcreate software suite.
Rotary Encoder / Display
The 521CRED is a CAN based multi-channel rotary encoder that will allow the user to adjust an analog value with the encoder while monitoring it's update on the 4 digit display. The software is integrated with HMI CANconnect software suite.
The 524Am is a CAN based alarm module.The overlay provides a single switch for local acknowledgment of the alarm and 2 led indicators for warning or error conditions. The software is integrated with HMI CANconnect software suite.
Sensor Input Module
The 540SIM Sensor Input Module) is CAN based five channel analog input module that will read a variety of different analog sensors and convert them to a user definable CAN message. The compatible analog signals are 0-5V,4-20mA and 0-300ohms, one channel 4-20mA and one channel 0-50V. The software is integrated with HMI CANconnect software suite.
CAN Based 8 channel Digital Input Module
The 541CEI is a CAN based eight channel digital input module that converts them to to a user definable CAN message. The compatible signals are active high, active low and dry contact. The software configuration integrated in the CANconnect software suite.
